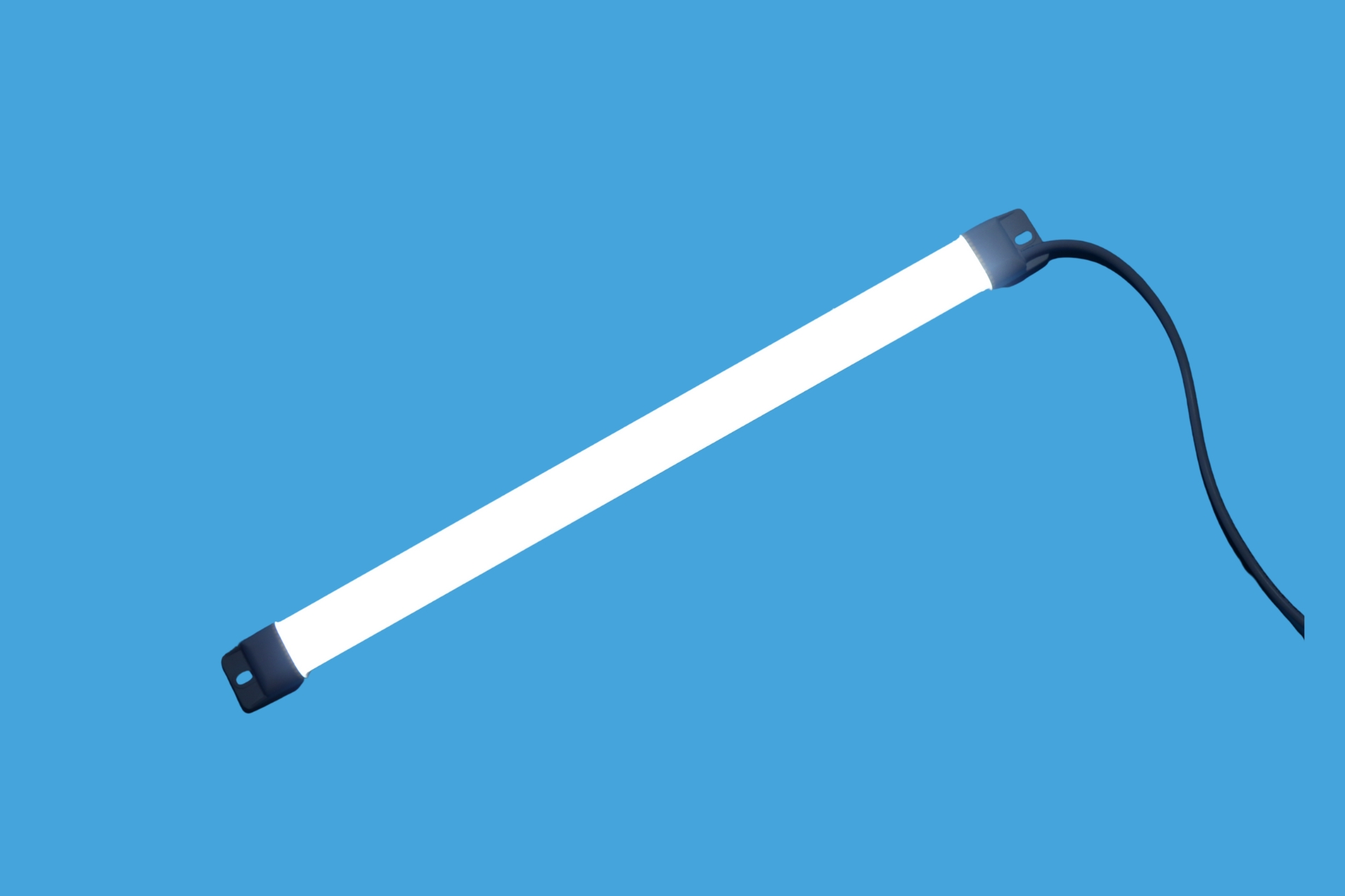

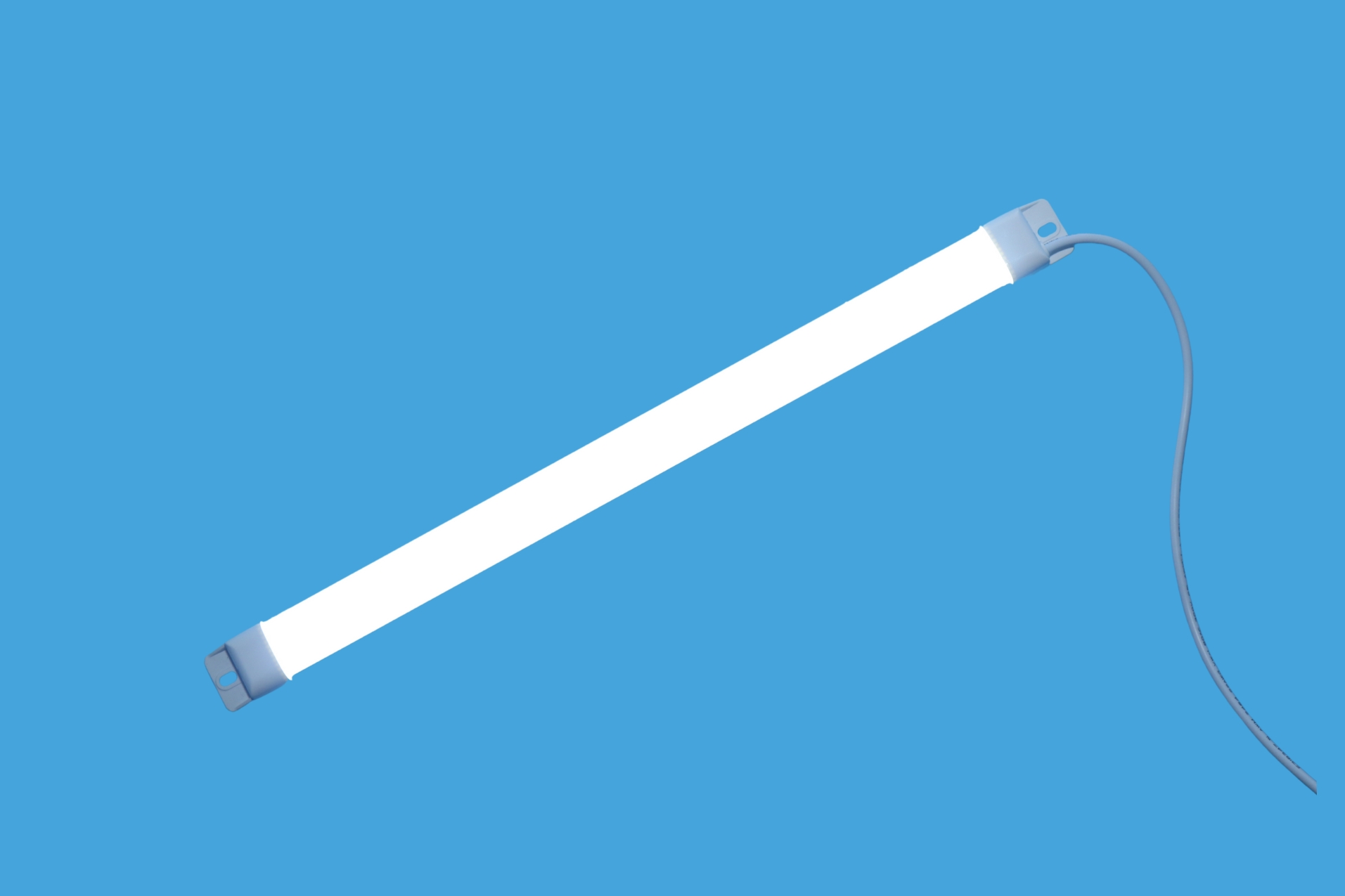

DSL Series- Denki Seigyo Strip Light (24V LED Industrial Light)
Denki Seigyo Strip Light
High-Intensity LED Strip Light for Industrial Lighting & Indication
Description
The DSL-364-24D-SL strip light is designed for robust industrial applications, where continuous, high-brightness LED illumination is required. Operating at 24 V DC, this strip offers a durable, low-profile lighting solution ideal for equipment indication bars, machine enclosures, production line visual cues or ambient engineering lighting.
DSL Series- Denki Seigyo Strip Light (24V LED Industrial Light)
Denki Seigyo Strip Light – DSL Series (24V LED Industrial Light)
High-Intensity LED Strip Light for Machine Illumination & Status Indication
The DSL-360-24D-SL model features a high-density LED array (approx. 360 LEDs/m) that provides bright and consistent lighting across the entire length. With a slim, modular design, these strip lights are easy to integrate into machine frames, control panels, and conveyor systems.
Key Features
✔ 24V DC operation for industrial systems
✔ High-density LED (approx. 360 LEDs/m) for uniform brightness
✔ Slim and compact design for easy installation
✔ Long life LED (>50,000 hours)
✔ Low maintenance and energy efficient
✔ Available in multiple colors (R/Y/G/B/W)
✔ Suitable for harsh environments (dust, vibration, humidity)
✔ Modular lengths for flexible applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSL-360-24D-SL |
| Voltage | 24 V DC ±10% |
| LED Density | ~360 LEDs/m |
| Light Source | High-intensity LED |
| Power Consumption | Approx. (model dependent) |
| Colors | Red / Yellow / Green / Blue / White |
| Mounting | Surface / Flat mount |
| Housing | Aluminium profile / industrial grade |
| Protection | IP65 (typical) |
| Temperature | -20°C to +50°C |
| Lifespan | ≥ 50,000 hours |
Available Length Options
The DSL series is available in multiple standard lengths:
| Model | Length | Voltage | Mounting |
|---|---|---|---|
| DSL-364-24D-SL | 364 mm | 24V DC | Flat mount |
| DSL-446-24D-SL | 446 mm | 24V DC | Flat mount |
| DSL-620-24D-SL | 620 mm | 24V DC | Flat mount |
| DSL-900-24D-SL | 900 mm | 24V DC | Flat mount |
Custom lengths may also be available depending on application requirements.
Model Code Explanation
Example: DSL-360-24D-SL
- DSL → Denki Seigyo Strip Light
- 360 → LED density / model type
- 24D → 24V DC supply
- SL → Strip Light
Applications
Denki Seigyo strip lights are widely used in:
• Machine illumination and workspace lighting
• Conveyor inspection lighting
• Control panel lighting
• Production line status indication
• Pick-and-place systems
• Industrial enclosures and cabinets
• Backlighting and accent lighting
Why Choose Denki Seigyo Strip Lights?
✔ Uniform and shadow-free illumination
✔ Compact design for tight installation spaces
✔ Reliable performance in industrial conditions
✔ Energy-efficient LED technology
✔ Easy integration into automation systems
LED strip lights improve visibility, inspection accuracy, and operator efficiency in industrial setups.
Installation Options
- Surface mount
- Panel mount
- Machine frame integration
Ordering Example
Model: DSL-364-24D-SL
Description: 24V DC strip light, 364 mm length, white color, flat mount.
What is DSL-360-24D-SL strip light used for?
It is used for machine illumination, conveyor lighting, and industrial panel lighting.
What voltage does the strip light operate on?
The DSL series operates on 24V DC power supply.
What lengths are available?
Available in 364 mm, 446 mm, 620 mm, and 900 mm, with custom options possible.
What colors are available?
Available in Red, Yellow, Green, Blue, and White.
Is it suitable for industrial environments?
Yes, it is designed for dust, vibration, and industrial conditions with IP65 protection.
