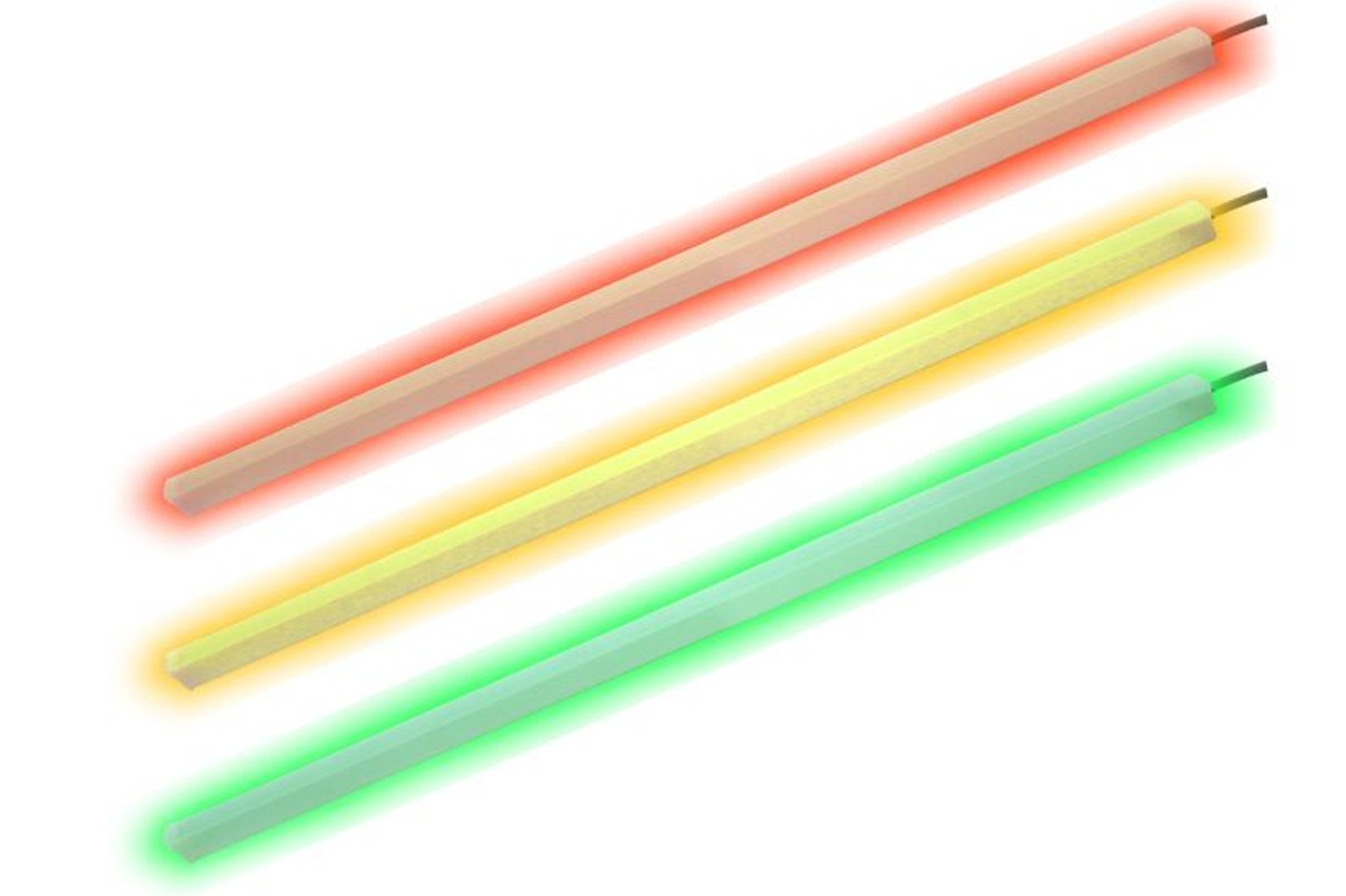

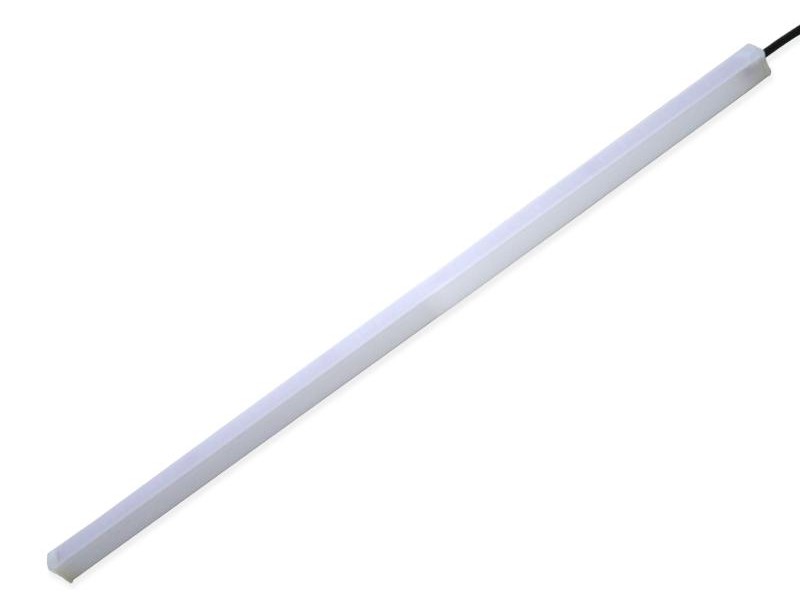

The Denki Seigyo DSML Series Multi-Colour Strip Lights are high-brightness industrial LED signal lights designed for machine automation, CNC equipment, machine vision systems, and industrial indication applications.
These strip lights provide uniform illumination, low heat generation, and excellent visibility using high-efficiency LEDs. With multi-colour indication (R/Y/G/B) and slim body construction, the DSML series is ideal for modern industrial automation systems.
Key Features
✔ High brightness LED illumination
✔ Multi-colour indication (Red / Yellow / Green / Blue)
✔ Uniform and soft lighting output
✔ Compact slim body design
✔ PNP and NPN control models available
✔ Long operating life up to 50,000 hours
✔ Industrial-grade durability
✔ Easy clip mounting installation
✔ Low heat generation and energy efficient
These features make the DSML series suitable for machine status indication and industrial decorative lighting.
Available Models
| Model | Control Type | Length |
|---|---|---|
| DSML-DP234 | PNP | 234 mm |
| DSML-DP450 | PNP | 450 mm |
| DSML-DP664 | PNP | 664 mm |
| DSML-DN664 | NPN | 664 mm |
| DSML-DP1024 | PNP | 1024 mm |
| DSML-DP2064 | PNP | 2064 mm |
Custom lengths are available from 234 mm to 2064 mm.
Model Code Explanation
Example: DSML-DP664
- DS → Denki Seigyo
- ML → Multi Colour Strip Light
- D → DC Type
- P → PNP Control
- N → NPN Control
- 664 → Length in mm
General Specifications
| Parameter | Specification |
|---|---|
| Product Type | Multi Colour LED Strip Light |
| Input Voltage | DC24V |
| Light Colours | Red / Yellow / Green / Blue |
| Mounting | Clip mounting |
The strip lights are designed for easy installation and reliable industrial operation.
Electrical Specifications
| Parameter | Specification |
|---|---|
| Power Consumption | Approx. 4.8W/m per colour |
| Input Current | Approx. 0.2A/m per colour |
| Control Type | PNP / NPN |
| Protection | Reverse polarity protection |
The integrated protection circuit ensures safe operation in industrial automation systems.
Optical Specifications
| Parameter | Specification |
|---|---|
| Light Source | High brightness LED |
| Illumination Type | Uniform strip lighting |
| Colour Output | Multi-colour indication |
The high-efficiency LEDs provide bright and consistent illumination for machine indication and visual guidance.
Mechanical Specifications
| Parameter | Specification |
|---|---|
| Housing Material | Aluminum alloy |
| PCB Type | Aluminum PCB |
| Cover Material | Diffused PC cover |
| Installation | Mounting clips |
The aluminum body ensures excellent heat dissipation and long operational life.
Environmental Specifications
| Parameter | Specification |
|---|---|
| IP Rating | IP50 |
| Operating Temperature | -20°C to +45°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 10–90% RH |
| Lifetime | Approx. 50,000 hours |
Designed for continuous use in industrial environments.
Wiring Configuration
The DSML series supports both PNP and NPN control wiring.
Wire Color Function
- Red Wire → Red Light
- Yellow Wire → Yellow Light
- Green Wire → Green Light
- Orange Wire → Buzzer
- Black Wire → DC12V / DC24V Common
(As illustrated in the wiring diagram on page 3 of the datasheet.)
Applications
Denki Seigyo DSML strip lights are widely used in:
• CNC Machines
• EDM Machines
• Packaging Machinery
• Conveyor Systems
• Robotics Equipment
• SMT Equipment
• Industrial Automation Systems
• Machine Status Indication
• Machine Vision Applications
Why Choose Denki Seigyo DSML Series?
✔ Multi-colour machine indication in one slim unit
✔ Compact industrial design
✔ Easy installation and maintenance
✔ Reliable operation with long LED lifetime
✔ Suitable for automation and machine vision systems
✔ Excellent brightness and visibility
Certifications
- CE
- RoHS
- FCC
Warranty: 1 Year
What is DSML multi colour strip light used for?
It is used for machine status indication, industrial automation, and machine vision lighting.
What colours are available in the DSML series?
The strip light supports Red, Yellow, Green, and Blue LED indication.
Does the DSML strip light support PNP and NPN control?
Yes, both PNP and NPN control models are available.
What is the operating voltage?
The DSML series operates on DC24V power supply.
What applications are suitable for DSML strip lights?
Suitable for CNC machines, robotics, conveyors, packaging systems, and automation equipment.
