FLAT STACK LIGHT

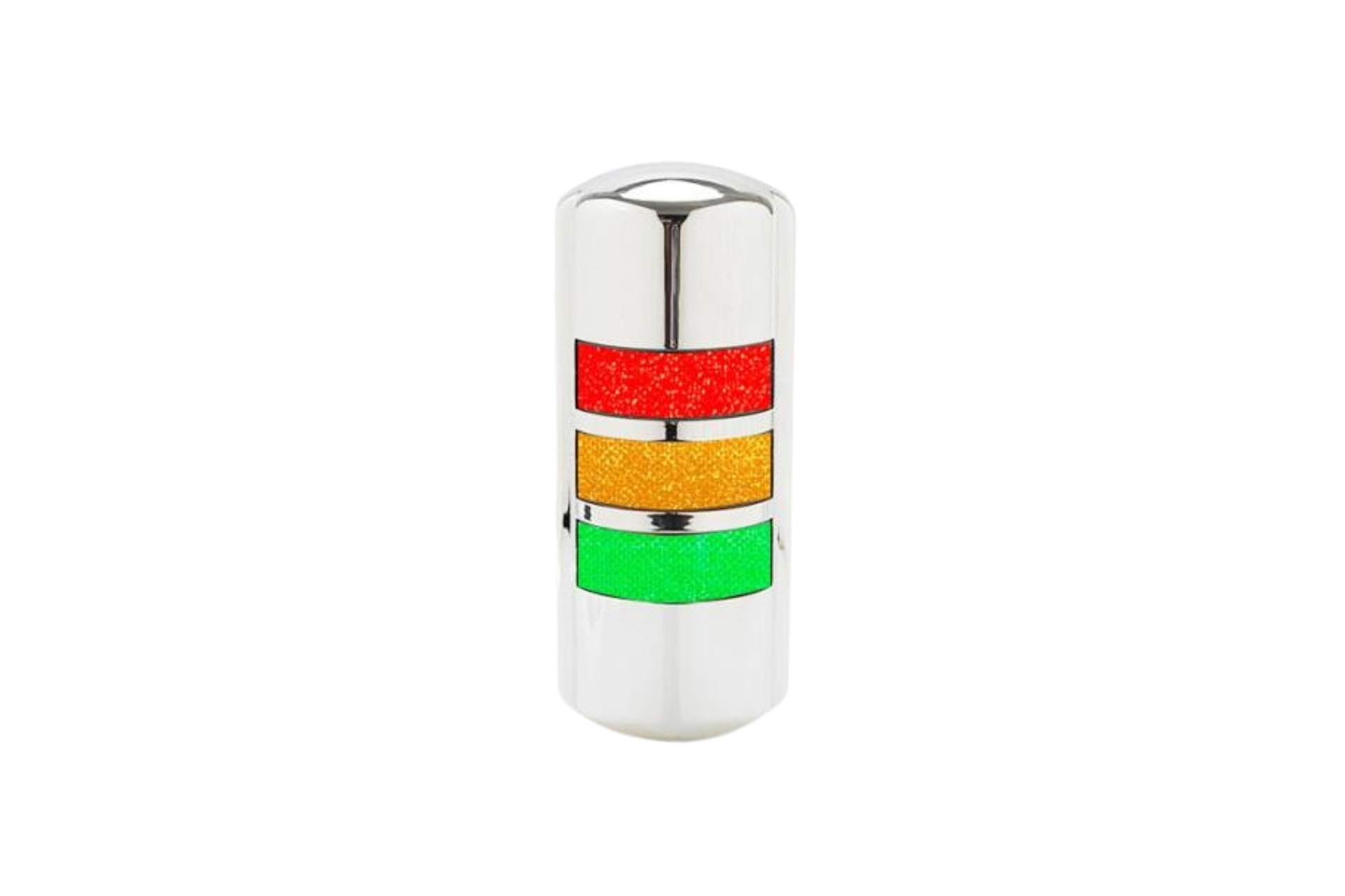

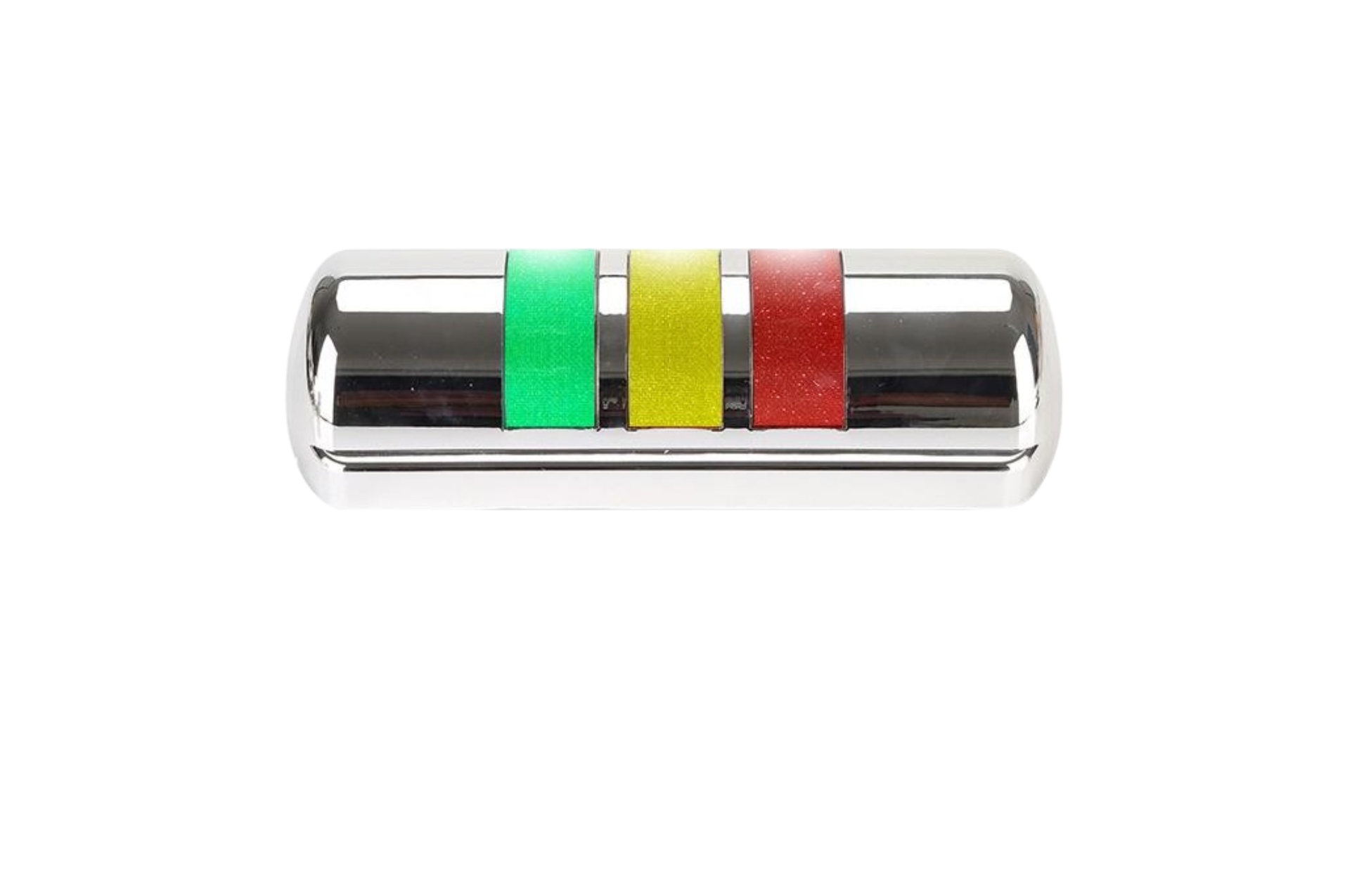

A rugged wall‑mounted LED stack‑light assembly designed for industrial signalling. Featuring multiple colour tiers (e.g., red/yellow/green) to indicate machine or process status, the unit is engineered for robustness, high visibility and continuous duty in production environments. It mounts directly to vertical surfaces (control panels or walls), connects to standard industrial voltage, and is backed by Denki Seigyo automation‑quality manufacturing.
FLAT STACK LIGHT
| Parameter | Typical values / notes |
|---|---|
| Model number | e.g., DS‑TLW‑3‑24DC (for 3‑tier, 24 V DC) — the specific Denki Seigyo part ID. |
| Mounting type | Wall‑mount bracket or base, suitable for vertical surface mounting; screw holes, bracket size, bracket material (often steel or aluminium) |
| Supply voltage / power | e.g., 24 V DC ±10 % or 100‑240 V AC 50/60 Hz; power consumption in W or VA. |
| Number of tiers / segments | e.g., 3‑tier (Red / Yellow / Green), 4‑tier (R/Y/G/Blue) etc. |
| Light source / colour | LED modules (or incandescent in older models); lens colours specified (red, amber, green, blue, white) |
| Light output / intensity | Luminous intensity (cd) or luminous flux (lm); viewing angle; elevation visibility distance. |
| Flash/steady modes | If selectable steady/flash or continuous or intermittent; frequency of flashing if applicable. |
| Ingress protection (IP rating) | e.g., IP65 or IP54, indicating resistance to dust/water spray — important for industrial usage. |
| Ambient temperature range | e.g., −10 °C to +50 °C; maybe storage temperature too. |
| Mounting orientation / bracket detail | Wall mount bracket dimensions; recommendation on clearance; bracket finish/corrosion resistance. |
| Material / body finish | Body material (ABS plastic, polycarbonate, die‑cast aluminium) and lens material; colour; ruggedness (vibration / shock rating). |
| Dimensions / weight | Overall height, width, depth; weight; tier height; bracket size. |
| Connection / wiring | Terminal block or cable entry (M20, PG13.5 etc); wiring diagram; colour code of segments. |
| Standards / certifications | Conformity to CE, UL, RoHS, IEC 60529 (for IP rating), maybe ISO for industrial signalling. |
| Operating environment | Humidity range, altitude limit, indoor/outdoor use; mounting surface requirements. |
| Service & maintenance | Replaceable LED modules? Service life (e.g., > 50,000 h), warranty information. |
| Accessories / options | Wall mount bracket, stainless bracket, buzzer/horn module, pole mount adapter, extra lens colours. |
