DENKI SEIGYO – DSRS1C-D6/24T 6–24V Slim Relay with 6A Current
Category: Relay / Slim Relay
Manufacturer: Denki Seigyo
Product Overview
The Denki Seigyo DSRS1C-D6/24T is a slim-type industrial control relay designed for low-voltage (6–24V) operation with a 6A switching capacity. Engineered for reliable and long-lasting performance, it provides high-speed switching, low power consumption, and excellent vibration resistance, making it ideal for compact automation panels and industrial control applications.
Its slim profile allows for efficient panel space utilization, and it can be conveniently installed using PCB or socket mounting options.
Key Characteristics
-
Compact slim structure – optimized for dense control panel layouts
-
Low voltage operation (6–24V) – suitable for DC logic and control circuits
-
Long mechanical life – built for durable and reliable switching cycles
-
Low power consumption – enhances energy efficiency
-
High insulation strength and reliability – for safe operation under industrial conditions
-
Compatible with PCB or socket mounting – ensuring installation flexibility
Versatile and Reliable Industrial Relay
Upgrade your industrial automation systems with the Denki Seigyo DSRS1C-D6/24T Slim Relay, combining 6A switching power and universal 6–24VDC control compatibility.
Its compact design and high-performance contact system make it ideal for process control, signaling, and machine interface operations.
Strict quality standards ensure stable, long-term operation, even in harsh industrial environments.

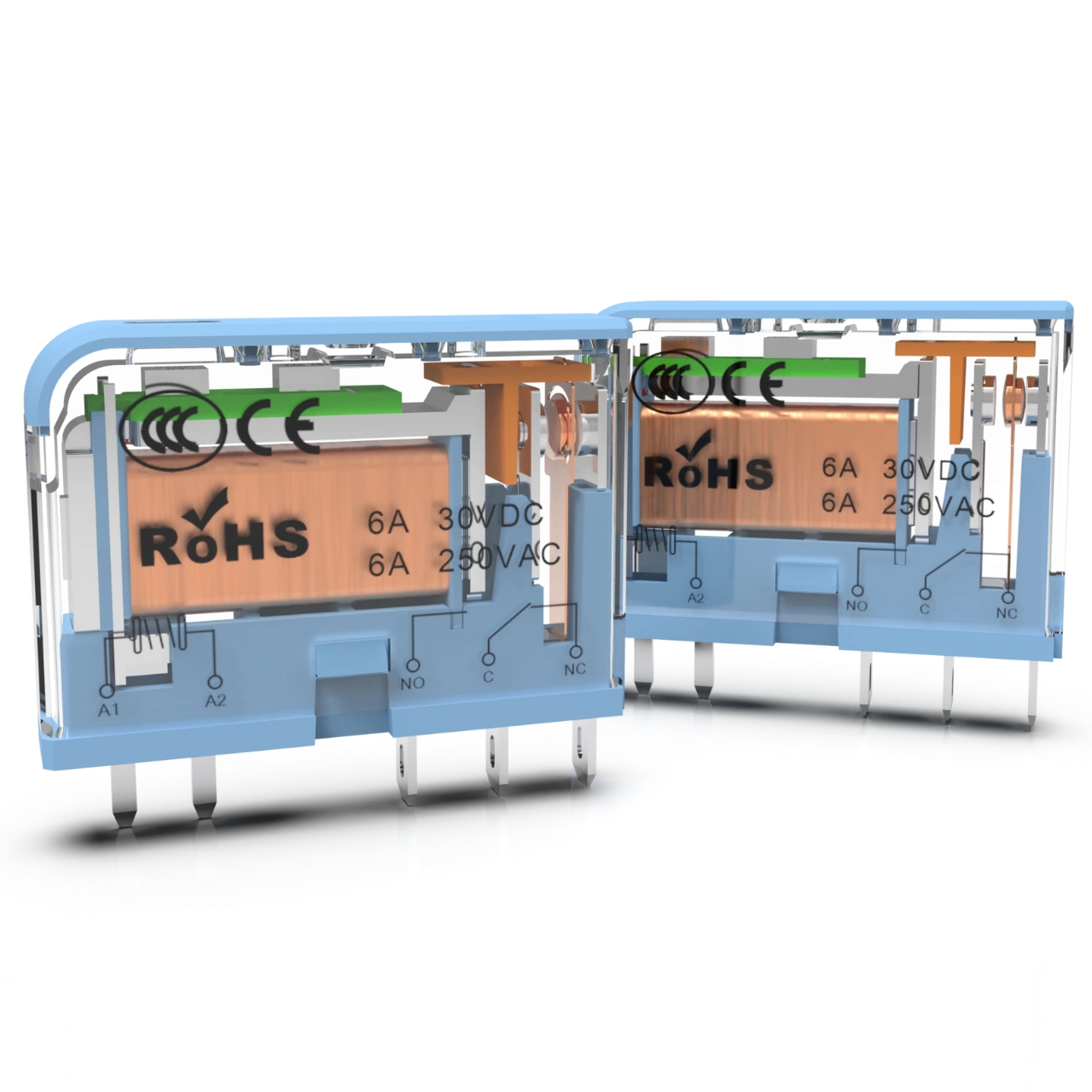

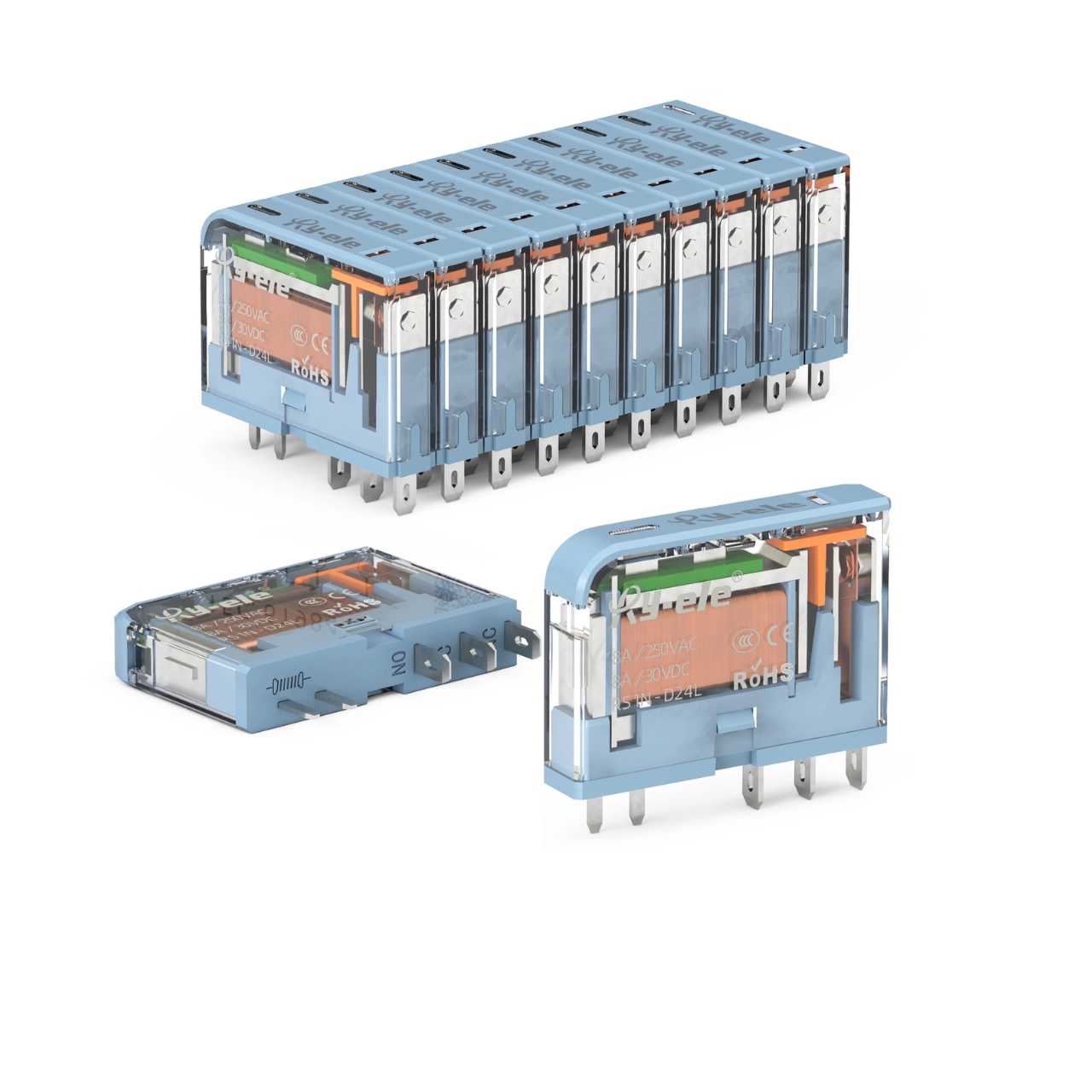

DSRS1C-D6/24T 6-24V Slim Relay with 6A current
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSRS1C-D6/24T |
| Type | Slim Electromechanical Relay |
| Manufacturer | Denki Seigyo |
| Contact Configuration | SPDT (1 Changeover) |
| Number of Pins | 4-Pin / 5-Pin (depending on socket version) |
| Rated Coil Voltage | 6–24V DC (wide range) |
| Coil Power Consumption | Approx. 0.8 W |
| Rated Load Current | 6A |
| Load Voltage Range | 5–250VAC / 5–30VDC |
| Contact Rating | 6A @ 250VAC / 30VDC (Resistive Load) |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤ 100 mΩ (initial) |
| Operate Time | ≤ 10 ms |
| Release Time | ≤ 5 ms |
| Insulation Resistance | ≥ 100 MΩ at 500VDC |
| Dielectric Strength | 2000 VAC (Coil–Contact, 1 min) |
| Mechanical Life | ≥10 million operations (no load) |
| Electrical Life | ≥100,000 operations (rated load) |
| Ambient Temperature | -25°C to +55°C |
| Storage Temperature | -30°C to +80°C |
| Mounting Type | PCB / Socket Mount |
| Dimensions (L × W × H) | Approx. 28 × 10 × 25 mm |
| Weight | Approx. 15 g |
| Compliance | CE, RoHS |
Key Features
-
Slim, compact design ideal for control panel space-saving
-
High reliability for continuous operation in automation systems
-
Wide 6–24VDC control range for flexible applications
-
Fast switching response for precise signal control
-
Transparent housing for visual inspection (optional LED indicator)
-
Socket or PCB mountable for flexible integration
-
Long electrical life and silent operation
Applications
-
PLC I/O interface and signal control
-
Process automation systems
-
Industrial control panels
-
Machinery and equipment control
-
Power distribution and logic circuits
-
HVAC, building, and lighting automation
Ordering Information
| Model | Coil Voltage | Contact Type | Load Capacity | Mounting | Indicator Option |
|---|---|---|---|---|---|
| DSRS1C-D6/24T | 6–24VDC | SPDT (1C) | 6A @ 250VAC / 30VDC | PCB / Socket | Optional LED |
Product Summary
The Denki Seigyo DSRS1C-D6/24T Slim Relay delivers compact design, high performance, and versatile low-voltage control in one robust package. With 6A switching capability, wide voltage range, and excellent reliability, it is the ideal solution for modern automation, industrial control, and process applications requiring precision and durability.
