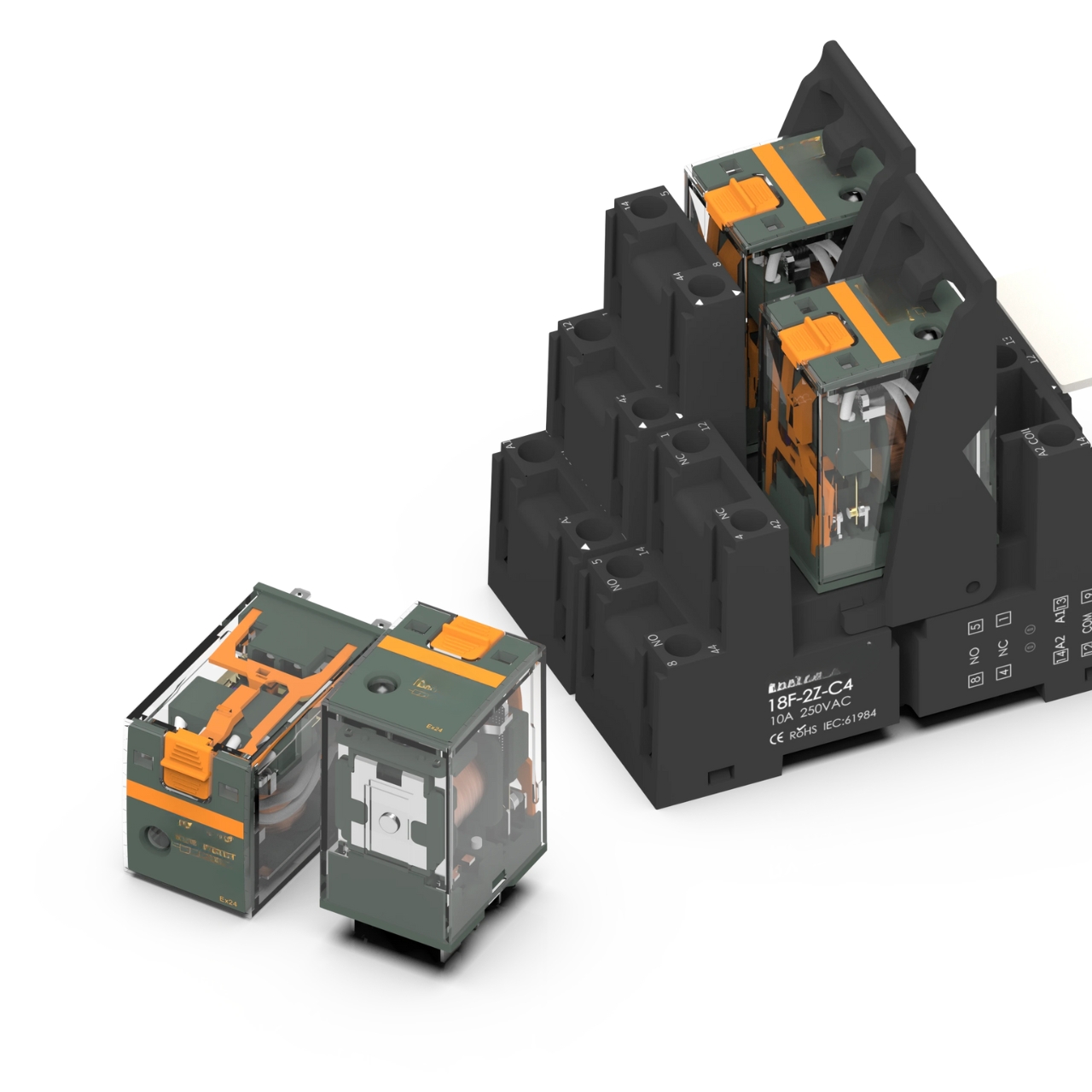

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSRXS2CN |
| Type | Intermediate Electromagnetic Relay |
| Manufacturer | Denki Seigyo |
| Contact Configuration | 2NO + 2NC (DPDT) |
| Number of Pins | 8-Pin |
| Rated Coil Voltage | 24VDC / 220VAC |
| Coil Power Consumption | Approx. 0.9 W (DC) / 1.2 VA (AC) |
| Contact Rating | 10A @ 250VAC / 30VDC (Resistive Load) |
| Contact Material | Silver Alloy |
| Contact Resistance | ≤ 100 mΩ (initial) |
| Operate Time | ≤ 20 ms |
| Release Time | ≤ 10 ms |
| Insulation Resistance | ≥ 100 MΩ at 500VDC |
| Dielectric Strength | 2000 VAC (Coil–Contact, 1 min) |
| Mechanical Life | ≥10 million operations (no load) |
| Electrical Life | ≥100,000 operations (rated load) |
| Ambient Temperature | -25°C to +70°C |
| Storage Temperature | -30°C to +85°C |
| Mounting Type | Plug-in (Socket Mount) |
| Indicator | Built-in LED indicator |
| Test Function | Manual test button |
| Protection | Dustproof transparent cover |
| Dimensions (L × W × H) | Approx. 27 × 36 × 21 mm |
| Weight | Approx. 50 g |
| Compliance | CE, RoHS |
Key Features
-
Dual coil voltage design: 24VDC / 220VAC for versatile control
-
2NO + 2NC contacts for advanced control flexibility
-
LED operation indicator for instant status visibility
-
Manual test button for easy relay testing
-
High switching reliability and contact precision
-
Long operational life and silent switching performance
-
Standard 8-pin base compatible with most industrial sockets
-
Strong resistance to vibration and environmental stress
Applications
-
Industrial automation and PLC systems
-
Control and signal switching panels
-
Machine tools and process equipment
-
HVAC, lighting, and building management systems
-
Power distribution and safety circuits
-
Auxiliary and interlocking control
Ordering Information
| Model | Coil Voltage | Contact Type | Load Capacity | Mounting | Indicator Option |
|---|---|---|---|---|---|
| DSRXS2CN-24DC | 24VDC | 2NO + 2NC (DPDT) | 10A @ 250VAC / 30VDC | 8-Pin Socket | LED + Test Button |
| DSRXS2CN-220AC | 220VAC | 2NO + 2NC (DPDT) | 10A @ 250VAC / 30VDC | 8-Pin Socket | LED + Test Button |
Product Summary
The Denki Seigyo DSRXS2CN 8-Pin Intermediate Relay offers reliable, flexible, and intelligent control for industrial automation systems.
Featuring 2NO+2NC contacts, LED indication, and a manual test switch, it ensures precise control, simplified maintenance, and long service life.
With universal coil options (24VDC / 220VAC) and robust construction, it is the perfect choice for control panels, PLC interfaces, and automation applications requiring durability and reliability.
