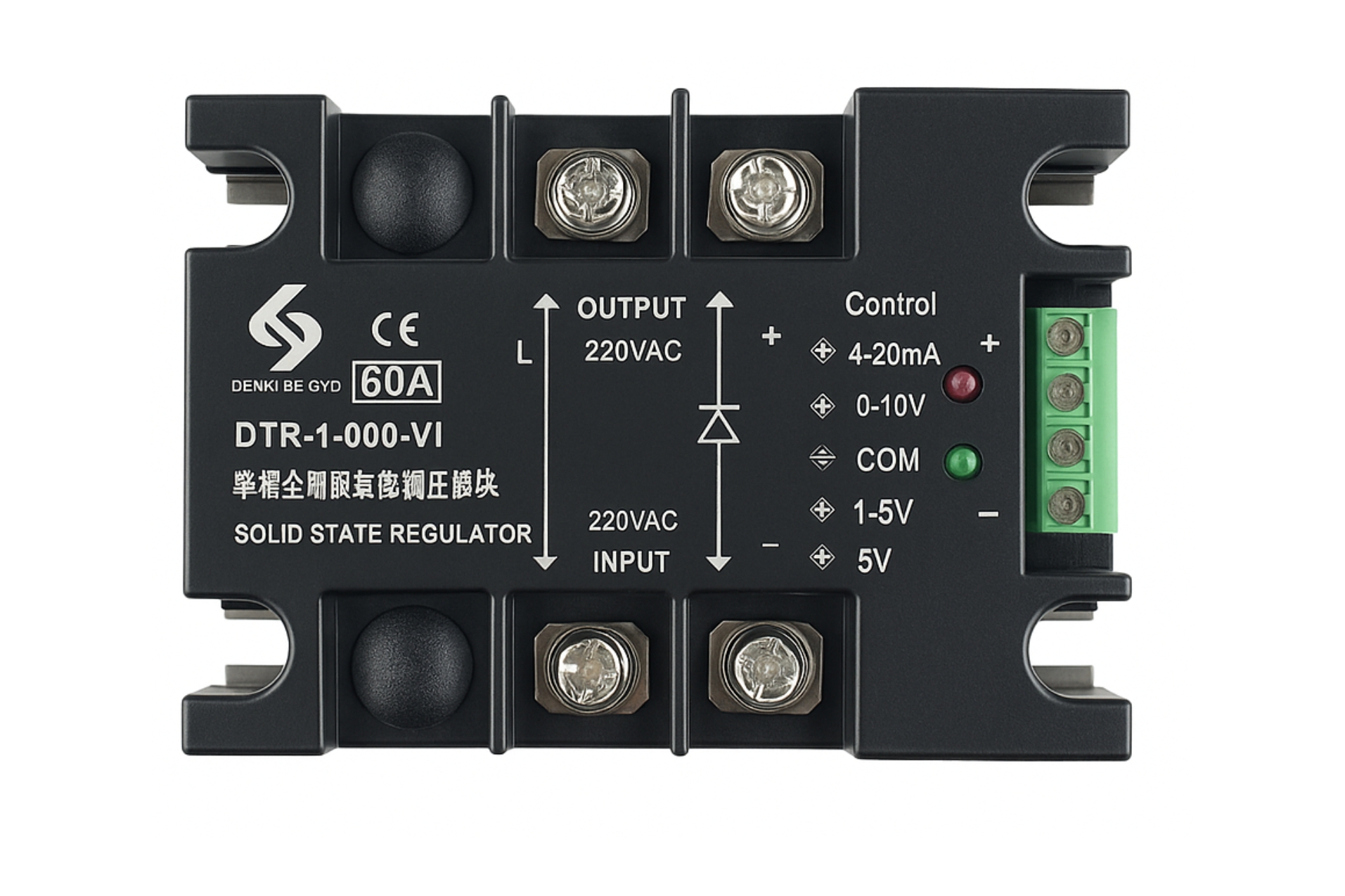

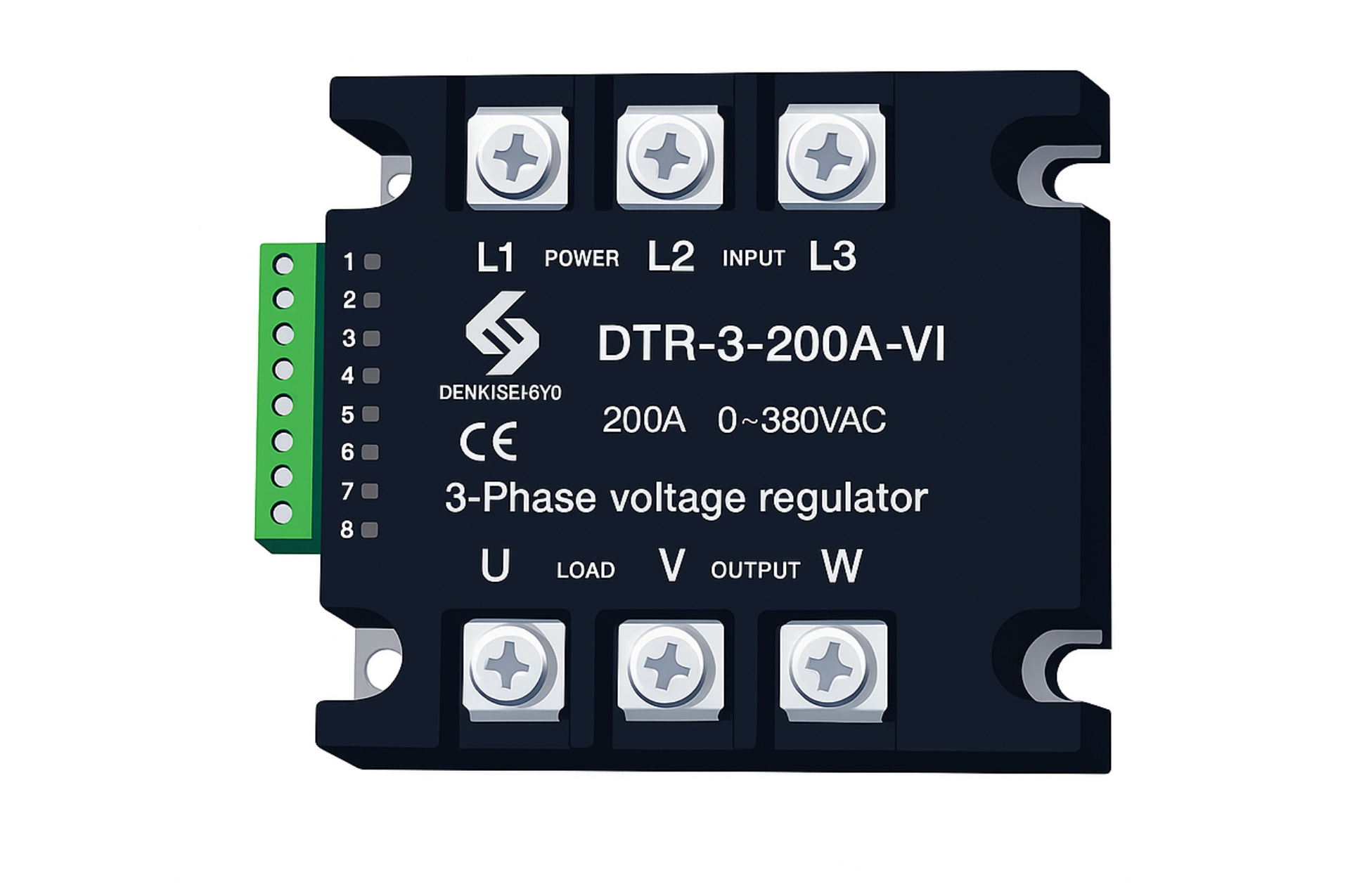

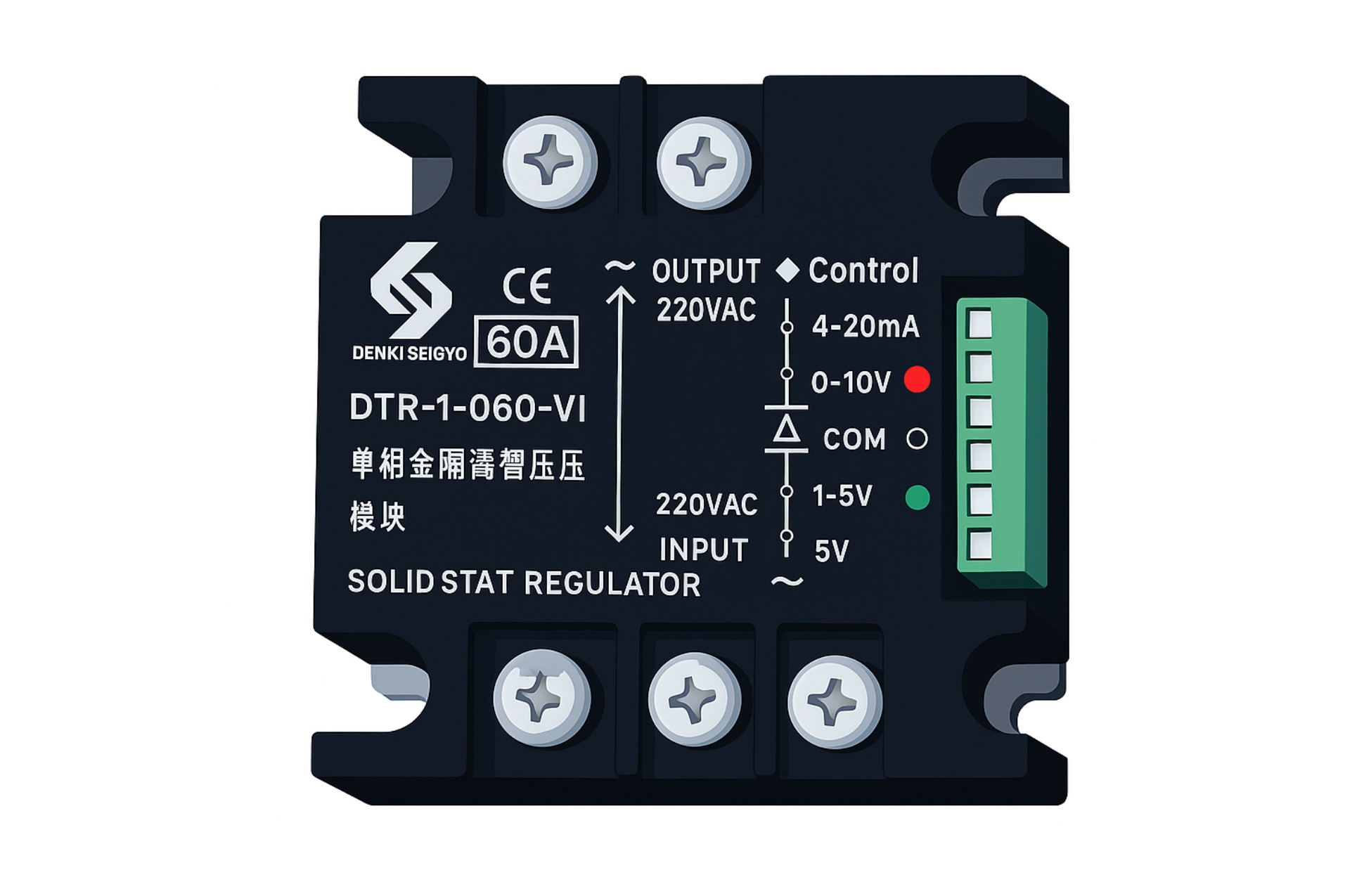

    Description

    The Denki Seigyo Analog Voltage SSR Series provides smooth and proportional control of AC or DC power loads using analog voltage input signals. Designed for applications requiring precise heat, light, or motor control, these SSRs convert 0–10 V or 1–5 V DC control signals into continuous or phase-controlled output.
    Equipped with optical isolation, surge protection, and zero-cross or phase-angle switching, Denki Seigyo SSRs deliver fast, quiet, and durable operation ideal for modern automation and process control systems

    Category:
    DENKI SEIGYO- VOLTAGE SSR
    •

    Features

    • Linear proportional output response to analog voltage input (0–10 V / 1–5 V)

    • Available in zero-cross or phase-control configurations

    • Optically isolated input for electrical noise immunity

    • High switching speed and long electrical life (no mechanical wear)

    • Built-in surge suppression and thermal protection

    • Low leakage and minimal output voltage drop

    • Compact, flame-retardant enclosure with LED status indication

    • Compatible with standard DIN-rail or panel mounting

    • Maintenance-free solid-state design

    Specifications

    Item Specification
    Control Input Signal 0–10 V DC or 1–5 V DC (selectable models)
    Input Impedance 100 kΩ typical
    Control Type Phase control / Zero-cross
    Load Voltage Range 24–480 VAC (RMS) / 24–110 VDC (model dependent)
    Load Current Ratings 5 A / 10 A / 25 A / 40 A / 60 A / 80 A
    Turn-On Time ≤ 1 ms (phase-control) / ≤ 1 cycle (zero-cross)
    Turn-Off Time ≤ ½ cycle (8.3 ms @ 60 Hz)
    Dielectric Strength 2.5 kVAC (Input–Output), 1.5 kVAC (Output–Base)
    Isolation Resistance ≥ 100 MΩ (at 500 VDC)
    Leakage Current (Off-State) ≤ 10 mA (at rated voltage)
    Voltage Drop (On-State) ≤ 1.6 V RMS (at rated load current)
    Operating Temperature –20 °C to +80 °C (no condensation)
    Cooling Method Natural convection / forced-air with heat sink
    Protection Circuit Surge absorber, overheat cutoff (optional)
    Indicator Power (LED green), Output (LED red)
    Mounting Type DIN-rail / Panel mount
    Housing Material Flame-retardant PC (UL94 V-0)
    Weight Approx. 150 – 250 g (depending on model)

    Model Selection Table

    Model Input Signal Load Voltage Load Current Control Type Mounting Type Cooling Option
    DSSR-V05Z 0–10 V DC 24–280 VAC 5 A Zero-cross Panel mount Natural
    DSSR-V25Z 0–10 V DC 24–480 VAC 25 A Zero-cross DIN rail With heat sink
    DSSR-V40P 0–10 V DC 24–480 VAC 40 A Phase control Panel mount Forced-air
    DSSR-V60P 0–10 V DC 24–480 VAC 60 A Phase control DIN rail Forced-air
    DSSR-V10Z 1–5 V DC 24–280 VAC 10 A Zero-cross Panel mount Natural
    DSSR-V25P 1–5 V DC 24–480 VAC 25 A Phase control DIN rail With heat sink

    Applications

    • Proportional heater and temperature control

    • Dimming for industrial and stage lighting systems

    • Variable-speed control of AC fans and pumps

    • Servo and motion control circuits

    • Precision power regulation in packaging and molding machines

    Optional Accessories

    Part Number Description
    DHS-200C Heat sink (200 mm, 0.4 °C/W)
    DSV-010C 0–10 V signal conditioning converter
    DBR-24V 24 V DC control power supply
    DMH-SRL01 Mounting rail and bracket kit

    Ordering Example

    Model: DSSR-V25Z
    Description: Analog voltage solid state relay, 0–10 V DC input, 25 A load, 24–480 VAC output, zero-cross control, DIN-rail mount
