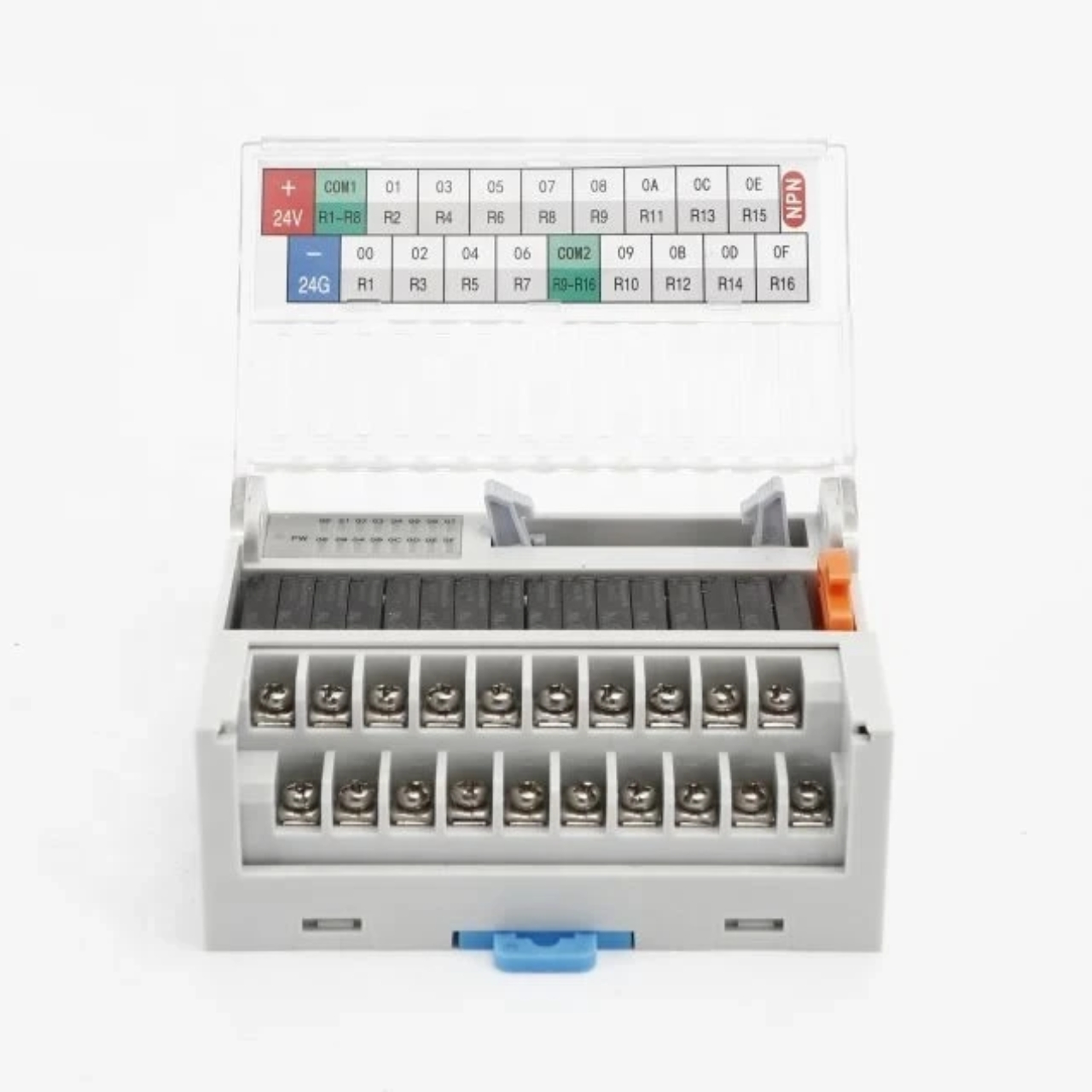

DSR1H16-64 Terminal Block Connector for Camper Part Relay Module
Product Overview
The Denki Seigyo DSR1H16-64 is a premium 64-pin terminal block connector designed for multi-channel relay modules, PLC interfaces, and camper part control systems.
It provides organized, reliable, and vibration-resistant wiring between relay boards and external circuits — offering a clean, professional wiring interface for industrial and automotive relay systems.
Built with industrial-grade materials, screw-type terminals, and flame-retardant housing, the DSR1H16-64 ensures long-term electrical reliability, safety, and ease of maintenance in automation and vehicle applications.
Key Characteristics
-
64-pin terminal interface for high-density multi-channel connections
-
Designed for 16-channel relay modules (DS1H16, DS1H4-16, and compatible series)
-
Secure screw-type terminals ensure vibration-proof electrical connections
-
Industrial-grade housing with superior dielectric insulation
-
Clear terminal markings for simplified identification and maintenance
-
Compatible with PLCs, I/O modules, and camper part relay boards
-
Available with optional DIN rail or panel mounting accessories
-
Flame-retardant body and corrosion-resistant terminals
Versatile and Reliable Connection Interface
The Denki Seigyo DSR1H16-64 acts as a universal wiring hub between relay modules and field devices.
Its 64-channel screw terminal interface simplifies the process of connecting output loads and control signals.
Engineered for both industrial automation and vehicle camper systems, it combines mechanical strength, stable conductivity, and organized wiring layout — ensuring efficiency, safety, and performance in all control environments.
DSR1H16-64 Terminal Block Connector for Camper Part Relay Module
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSR1H16-64 |
| Type | Terminal Block Connector / Interface Module |
| Manufacturer | Denki Seigyo |
| Compatible Relay Modules | DS1H4-16 / DS1H8-16 / DS1H16-16 or equivalent 16-channel boards |
| Connector Interface | 64-Pin Male/Female Header (Signal Bus Interface) |
| Number of Terminals | 64 screw-type connection points |
| Terminal Type | M2.6 Screw Clamp (Nickel-plated) |
| Wiring Capacity | 0.2–2.5 mm² (AWG 24–14) |
| Contact Resistance | ≤ 30 mΩ |
| Insulation Resistance | ≥ 100 MΩ @ 500 VDC |
| Dielectric Strength | 2000 VAC (1 min between adjacent terminals) |
| Rated Voltage | Up to 300 VAC / 125 VDC |
| Rated Current | 10 A max per terminal |
| Housing Material | Flame-retardant PA66 (Nylon), UL94 V-0 rated |
| Terminal Material | Brass with nickel plating |
| Connection Orientation | Horizontal entry, screw terminal access |
| Mounting Type | Panel / DIN Rail (standard adapter available) |
| Housing Colour | Industrial Grey |
| Protection Option | Optional transparent protective cover |
| Ambient Temperature | –25 °C to +85 °C |
| Storage Temperature | –30 °C to +100 °C |
| Humidity Range | 45–90 % RH (non-condensing) |
| Dimensions (L × W × H) | Approx. 155 × 85 × 35 mm |
| Weight | Approx. 220 g |
| Compliance | CE, RoHS Certified |
Key Features
-
High-density 64-terminal design for efficient multi-signal management
-
Screw-clamp connections for reliable, maintenance-free wiring
-
Flame-retardant housing ensures durability and safety
-
Compatible with Denki Seigyo relay modules and camper relay interfaces
-
Supports both AC and DC control applications
-
Industrial insulation and high dielectric strength
-
Easy field wiring and panel integration
-
DIN-rail and panel mount options available
Applications
-
Multi-channel relay interface connection
-
PLC and automation I/O expansion
-
Camper and automotive control panels
-
Industrial process and machinery control
-
Power distribution and load terminals
-
Control cabinet and signal junction interfaces
Ordering Information
| Model | Connector Type | No. of Terminals | Interface | Mounting Type | Housing Colour | Optional Accessories |
|---|---|---|---|---|---|---|
| DSR1H16-64 | Screw Terminal Block | 64 Terminals | 64-Pin Header | Panel / DIN Rail | Industrial Grey | Protective Cover / DIN Adapter |
Product Summary
The Denki Seigyo DSR1H16-64 Terminal Block Connector delivers professional-grade wiring organization for multi-channel relay modules and control systems.
Engineered for industrial and camper applications, it provides stable connectivity, safe electrical isolation, and high mechanical endurance.
Its 64-channel screw terminal layout and industrial PA66 housing make it the ideal solution for PLC panels, vehicle relay boards, and automation interfaces requiring long-term performance and reliability — built with Denki Seigyo’s commitment to engineering excellence.
