Special Features

M8 & M12 Connector Options

Available in commonly used M8 and M12 industrial connector sizes for compatibility with a wide range of sensors and automation devices.

Straight & Right-Angle Designs

Choose between straight and right-angle connector configurations depending on the available installation space and cable-routing requirements.

Male & Female Versions

Both male and female connector configurations are available for different sensor and device connection requirements.

Multiple Pin Configurations

The series supports 3-pin, 4-pin and 5-pin connector configurations for different sensor signal and power requirements.

Multiple Cable Lengths

Standard cable lengths include:

1 m • 2 m • 5 m • 10 m

This allows users to select a suitable cable length without unnecessary excess wiring.

Key Features

• Industrial sensor connector cable
• M8 and M12 connector sizes
• 3-pin / 4-pin / 5-pin configurations
• Straight connector option
• Right-angle connector option
• Male and female versions
• 1 m / 2 m / 5 m / 10 m cable lengths
• Suitable for industrial sensors
• Easy plug-and-play connection
• Suitable for machine automation
• Flexible cable routing
• Compact connector design
• Suitable for control panels and field wiring

Available Connector Cables

The Denki Seigyo connector cable series can be configured according to connector orientation, gender, pin count, connector size and cable length.

Model Number Structure

Example: CSF4-M12-2M

Example: CLM5-M12-5M

Model Code Definition

Model Selection

The model number can be selected using the following sequence:

C + S/L + F/M + Pin Count + M8/M12 + Cable Length

Straight Female Example

CSF4-M12-2M

→ Connector + Straight + Female + 4 Pin + M12 + 2 Meter

Straight Male Example

CSM4-M12-2M

→ Connector + Straight + Male + 4 Pin + M12 + 2 Meter

Right-Angle Female Example

CLF4-M12-2M

→ Connector + Right Angle + Female + 4 Pin + M12 + 2 Meter

Right-Angle Male Example

CLM4-M12-2M

→ Connector + Right Angle + Male + 4 Pin + M12 + 2 Meter

M8 Connector Cables

M8 connector cables are suitable for compact sensors and applications where installation space is limited.

Typical Applications

• Compact proximity sensors
• Photoelectric sensors
• Small automation equipment
• Compact machine tools
• Robotics
• Assembly machines
• Factory automation

The M8 range can be configured with the applicable 3-pin and 4-pin connection options.

M12 Connector Cables

M12 connector cables provide a robust industrial connection solution for a wide range of automation sensors and equipment.

Typical Applications

• Inductive proximity sensors
• Photoelectric sensors
• Measurement sensors
• Industrial automation
• Conveyor systems
• Machine tools
• Packaging machines
• Automotive automation
• Robotics
• Material handling equipment

M12 configurations can be selected according to the required pin count, connector orientation, gender and cable length.

Straight Connector

The straight connector configuration is suitable for conventional installations where the cable can extend directly from the sensor.

Code: S

Example:

CSF4-M12-2M

Right-Angle Connector

The right-angle connector configuration helps reduce the required cable-bending space and can be useful where the sensor is installed close to a machine wall or other obstruction.

Code: L

Example:

CLF4-M12-2M

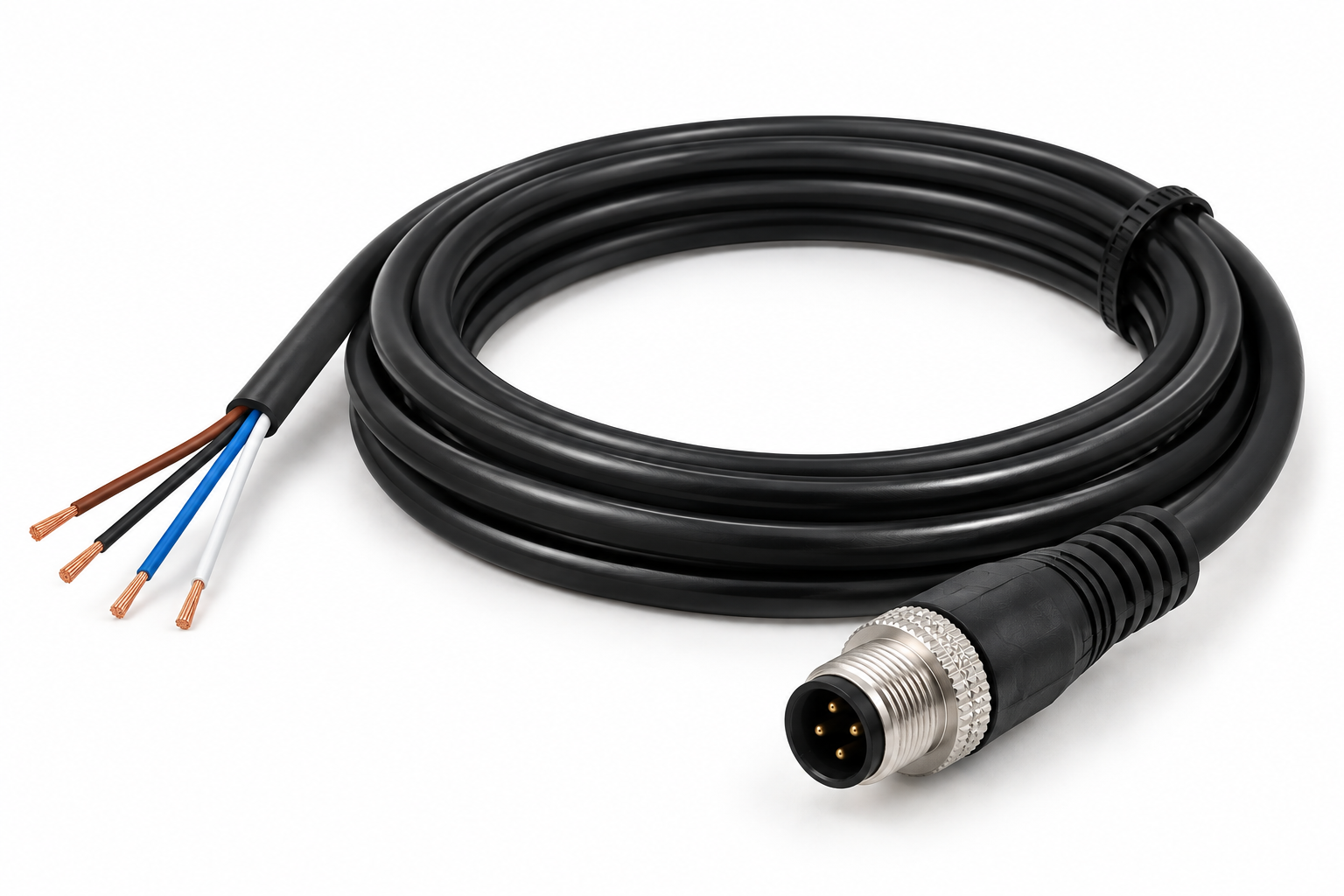

Male Connector

Male connector versions are available for applications requiring a male M8 or M12 connection.

Code: M

Example:

CSM4-M12-2M

Female Connector

Female connector versions are available for applications requiring a female M8 or M12 connection.

Code: F

Example:

CSF4-M12-2M
