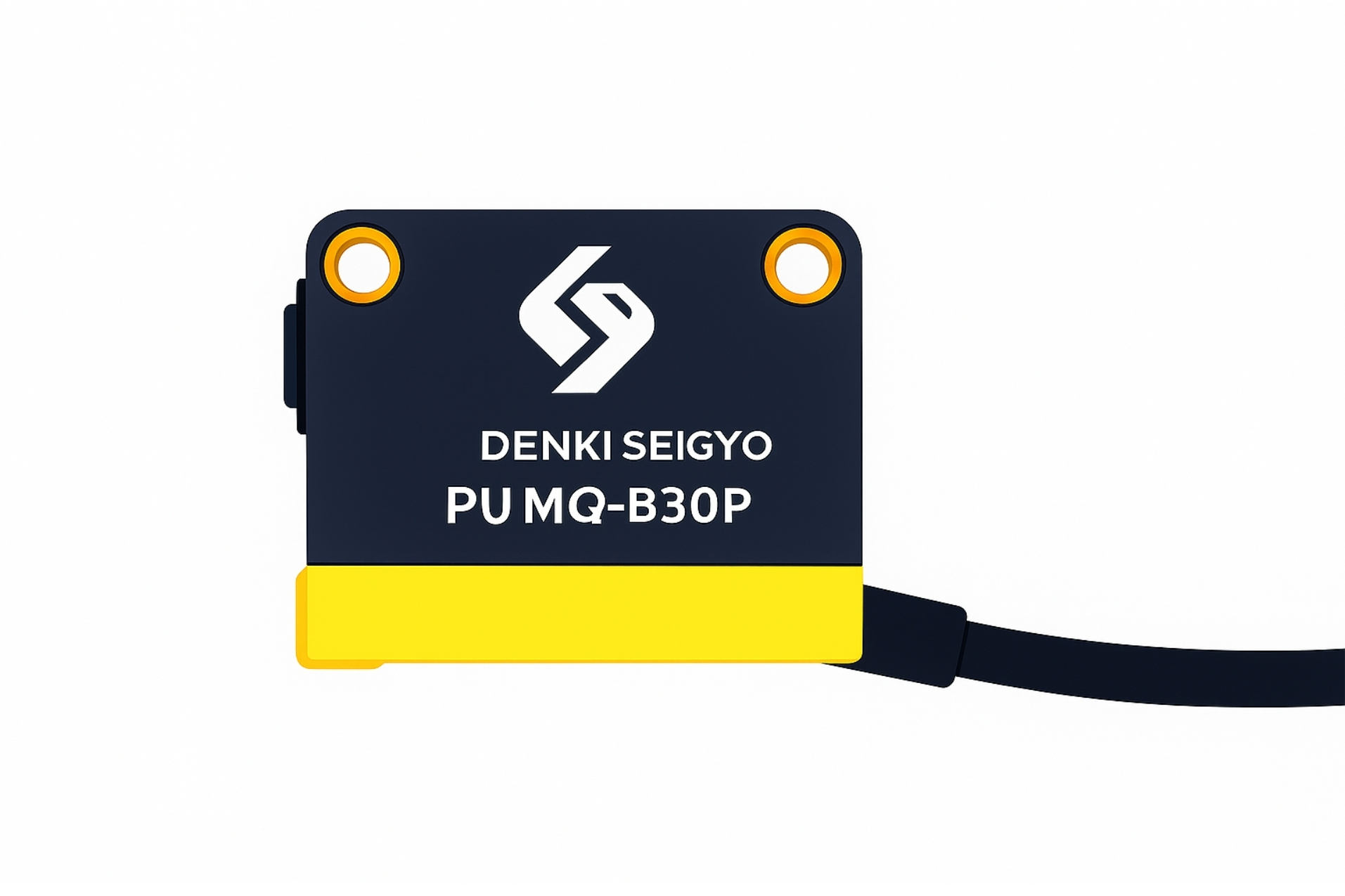

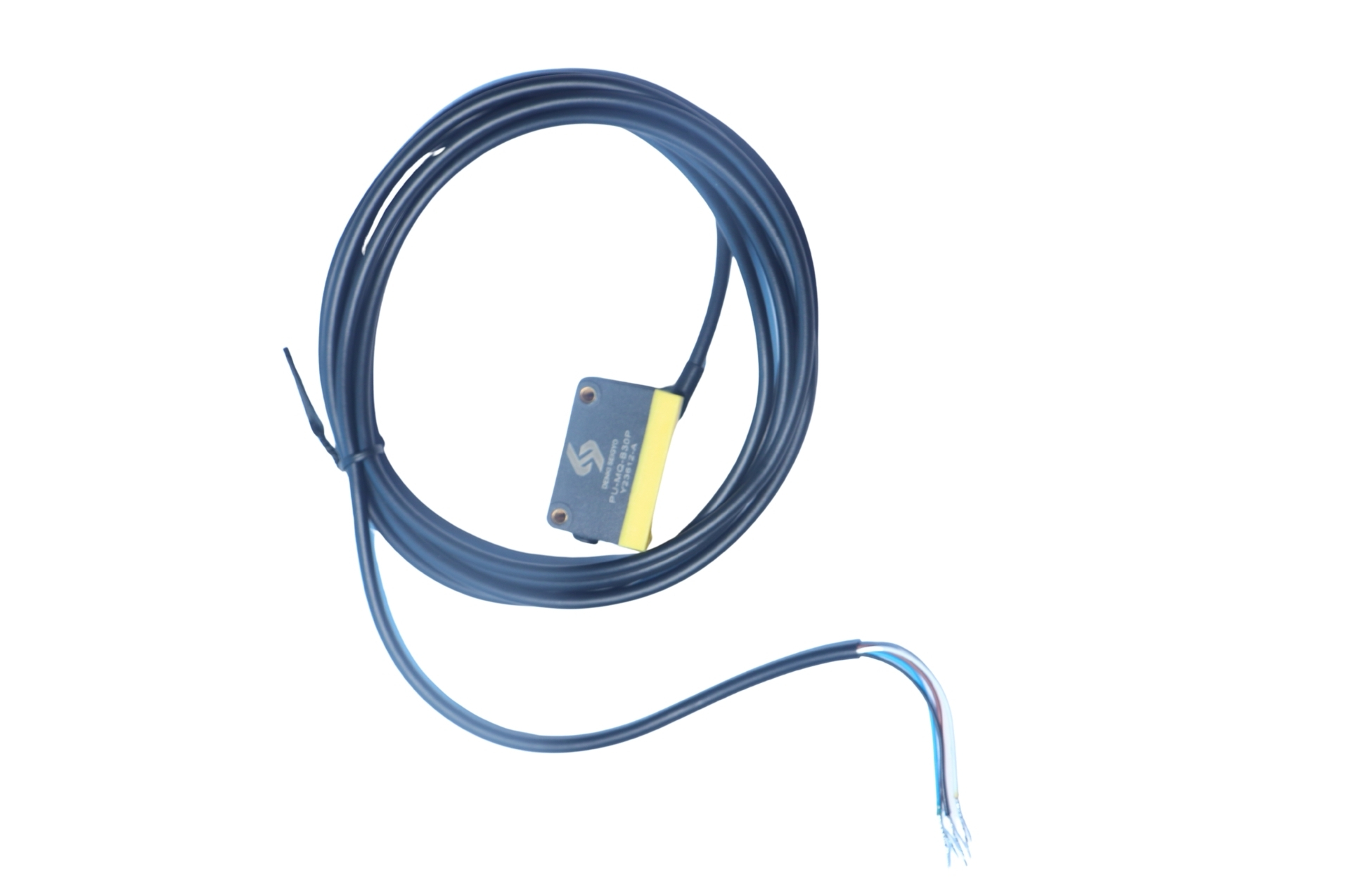

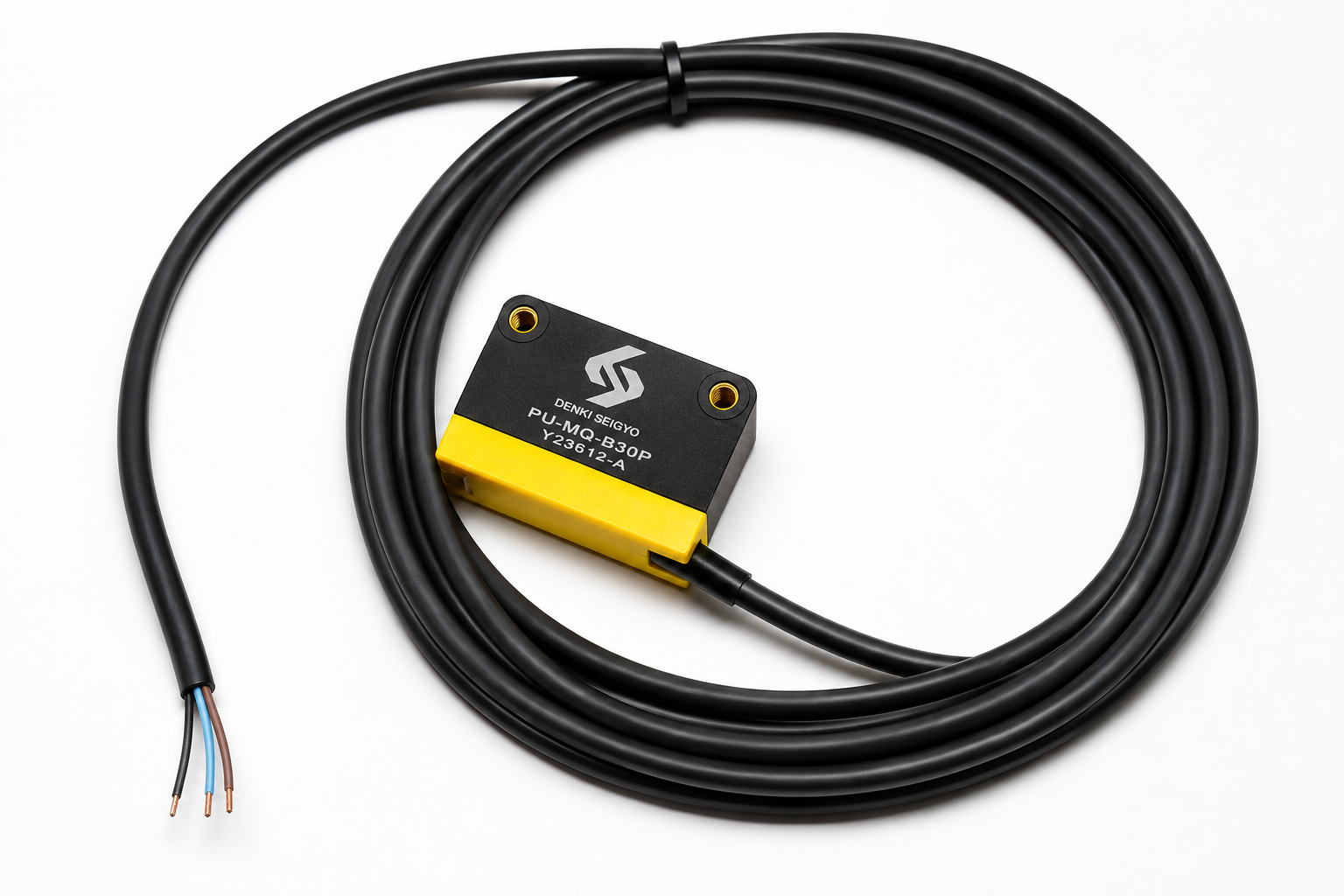

DENKI SEIGYO PU-MQ-B30N & PU-MQ-B30P PHOTO SENSOR

  • DENKI SEIGYO PU-MQ-B30N & PU-MQ-B30P PHOTO SENSOR
57

    • DENKI SEIGYO PU-MQ-B30N & PU-MQ-B30P PHOTO SENSOR

    Product Overview

    The PU-MQ-B30N/P is a high-performance Diffuse Background Separation (BGS) photoelectric sensor designed to reliably detect black, translucent, highly reflective metals, and mixed-color objects. With a strong BGS algorithm, it achieves precise discrimination with minimum black/white difference within 2 mm, making it ideal for demanding industrial automation environments.

    Built using imported German ultrasonic welding technology, the housing is dustproof and waterproof, featuring reinforced cabling with copper sleeve protection and robust workmanship for long service life. Integrated polarity and surge protection allows resistance up to 48 V shock without affecting normal operation.

    Quick View
    Category:
    DENKI SEIGYO PU-MQ-B30N & PU-MQ-B30P PHOTO SENSOR
    •

    Key Features

    • Detects a wide variety of targets: opaque, translucent, black & reflective materials

    • Strong BGS function — black/white minimum difference within 2 mm

    • Red LED (660 nm) light source for stable detection

    • Imported German ultrasonic welding (enhanced sealing & durability)

    • Reinforced cable with copper sleeve to prevent dragging damage

    • Polarity + surge protection, withstands 48 V voltage shock

    • Compact rectangular body with easy sensitivity adjustment

    • Light-ON / Dark-ON selectable by switch & wire

    • Industrial-grade enclosure suitable for harsh environments

    Technical Specifications

    Item Specification
    Sensing Type Diffuse background separation type
    Sensing Distance 300 mm
    Sensing Target Opaque, translucent material
    Light Source Red LED (660 nm)
    Response Time Max. 1 ms
    Power Supply 12–24 VDC ±10% (ripple P-P: max. 10%)
    Current Consumption Max. 30 mA
    Sensitivity Adjustment Sensitivity adjuster
    Operation Mode Light ON / Dark ON (set by switch & wire)
    Control Output NPN /PNP open collector
    Connection Type Cable type (Ø3.5, 2 m)
    Ambient Illumination Sunlight: max. 11,000 lx; Incandescent: max. 3,000 lx
    Ambient Temperature −25 to 55 °C (storage −40 to 70 °C)
    Ambient Humidity 35–85% RH (storage 35–85% RH)
    Protection Structure IP65
    Hysteresis (Distance) Max. 20% of sensing distance
    Weight Approx. 70 g (sensor body approx. 45 g)
    Standard Test Target Non-glossy white paper 100 × 100 mm

    Construction & Materials

    • Case: Polycarbonate + ABS

    • LED Cap: Polycarbonate

    • Sensing Part: PMMA (Polymethyl methacrylate)

    • Bracket: SUS304 (Stainless Steel 304)

    • Bolt / Nut: Chromium-molybdenum steel

    • Sleeve: Brass, Ni-plated

    Accessories (Standard)

    • Fixing bracket

    • M3 bolts ×2

    • M3 nuts ×2

    • Adjuster driver

    Typical Applications

    • Packaging & conveying systems

    • Color-mixed product sorting

    • Detection of transparent / translucent objects

    • Black object sensing on reflective backgrounds

    • Assembly automation equipment

    • General industrial positioning & counting
